1. PCB Assembly & Turnkey Manufacturing

At KSK Technology, our PCB Assembly & Turnkey Manufacturing service delivers a complete, end-to-end solution for businesses seeking high-quality, reliable, and fully assembled electronic boards. With advanced SMT lines, automated inspection systems, and expert engineering support, we ensure unmatched precision and consistency across every build—whether it’s rapid prototypes or full-scale production.

We streamline the entire manufacturing journey by managing BOM sourcing, component procurement, PCB assembly, testing, and final packaging under one roof. This integrated approach reduces lead times, improves product quality, and gives you complete visibility throughout the process. Designed to meet the demands of today’s fast-paced electronics industry, our turnkey solution ensures your product moves from concept to market faster, smoother, and with superior reliability.

What Makes Our Turnkey Manufacturing Stand Out:

KSK Technology
Complete handling of BOM sourcing, purchasing, and inventory management
Fully automated SMT processes for stable, high-precision assemblies
Capability to assemble complex boards including BGA, QFN, QFP, and fine-pitch components
Compliance with IPC-A-610 and RoHS/Non-RoHS standards
Multi-stage inspection using SPI, AOI, and board-level testing
Clear costing, transparent processes, and no minimum order requirement

Why Choose KSK for PCB Assembly

Rapid prototyping with seamless transition to mass production
Consistent quality ensured through stringent QC procedures
Reduced production delays and vendor dependencies
Ideal for startups, R&D teams, OEMs, and large-scale manufacturing
KSK Technology is committed to delivering dependable, high-performance PCB assemblies that align with your design expectations, technical standards, and project timelines. With our turnkey capability, you get a reliable manufacturing partner who takes care of every detail while you focus on innovation.

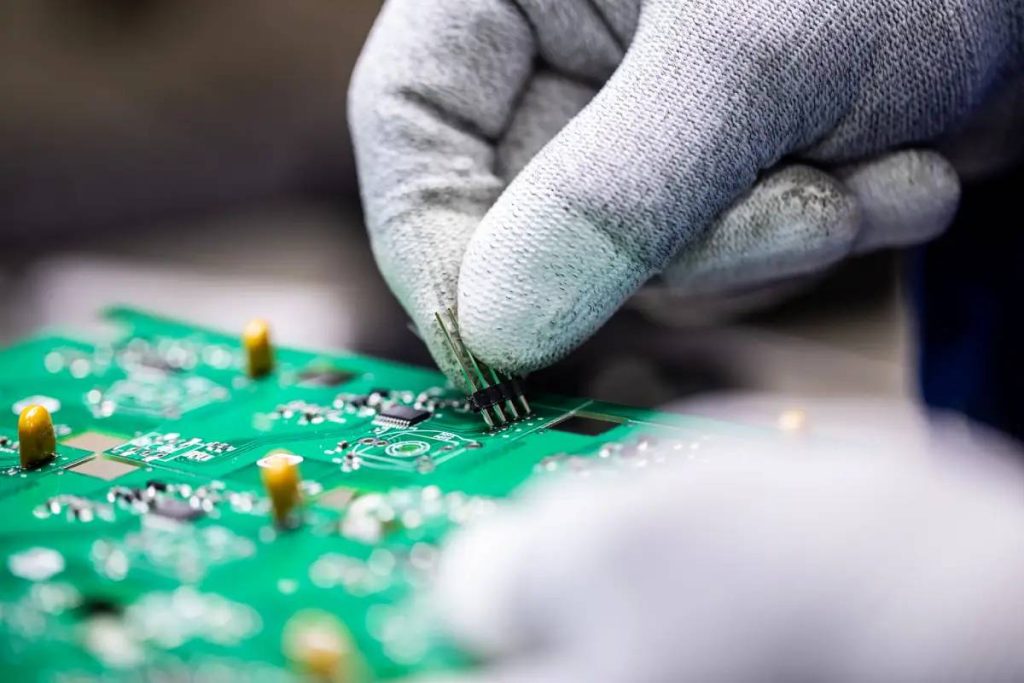

2. Through-Hole Assembly

Our Through-Hole Assembly service at KSK Technology is engineered to deliver durable, high-strength, and long-lasting PCB assemblies suitable for applications that demand mechanical stability and robust performance. Using advanced wave soldering systems, precise manual soldering stations, and stringent inspection protocols, we ensure every through-hole component is placed accurately, soldered cleanly, and validated thoroughly. From single-sided boards to complex multi-layer assemblies, we handle everything with precision, consistency, and unmatched attention to detail.

Designed for industries requiring high reliability—such as power electronics, automotive, industrial controls, and medical devices—our through-hole process combines skilled craftsmanship with modern equipment to achieve optimal solder joints and long-term product performance. Whether it’s low-volume prototypes or higher-volume production batches, we guarantee stable manufacturing, superior thermal performance, and exceptional electrical connectivity.

Our Through-Hole Expertise Includes

Automated wave soldering for consistent and high-volume production
Skilled manual soldering for sensitive or specialized components
Support for single-sided, double-sided, and multi-layer PCB assemblies
Strong mechanical stability ideal for connectors, transformers, relays, and high-power parts
Strict quality checks including visual inspection, continuity tests, and functional validation

Why Choose KSK for Through-Hole Assembly

Highly reliable solder joints for rugged, high-stress environments
Precision workmanship handled by trained and certified technicians
Smooth integration with SMT processes for hybrid PCB assemblies
Seamless transition from prototype builds to volume production
Consistent quality backed by IPC-A-610 compliance and tight QC controls
With our combination of advanced equipment and expert craftsmanship, KSK Technology delivers through-hole assemblies that meet the demanding expectations of modern electronics. We ensure every board is built to perform, endure, and exceed reliability standards.

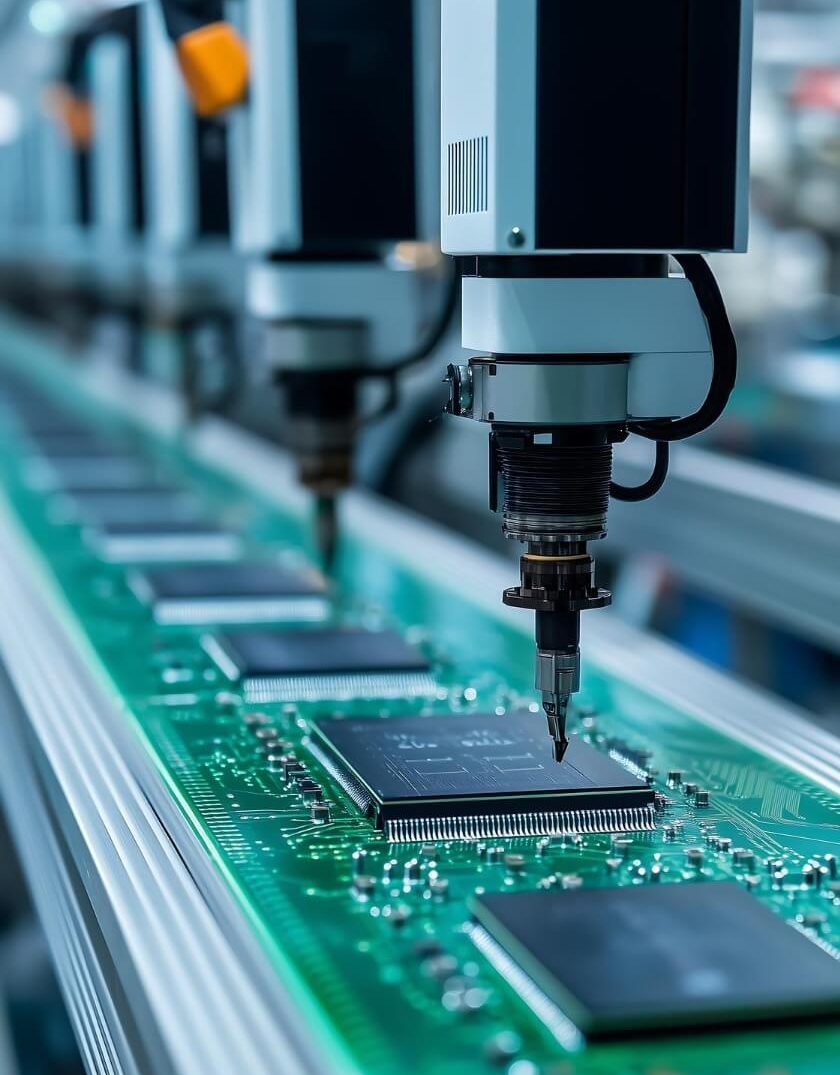

3. Surface Mount Technology (SMT) Assembly

Our Surface Mount Technology (SMT) Assembly service is built on precision, speed, and engineering excellence. At KSK Technology, we operate fully automated SMT lines equipped with advanced screen printing, high-speed Panasonic pick-and-place systems, inline SPI, and controlled reflow ovens to ensure accurate component placement and superior solder quality. This modern infrastructure allows us to assemble complex, high-density PCBs with exceptional consistency—whether for rapid prototypes or full-scale production.

With the capability to place fine-pitch, micro-miniature, and advanced package components such as BGA, QFN, QFP, and 0201/01005, we deliver assemblies that meet the highest industry specifications. Every board undergoes strict inspection and testing at every stage, ensuring long-term reliability and zero-defect performance. Our SMT process is optimized for industries requiring precision electronics, including IoT devices, consumer products, industrial controls, automotive electronics, medical instrumentation, and more.

Our SMT Assembly Capabilities

Automated SMT lines with advanced screen printing and pick-and-place machinery
Support for complex packages: BGA, QFN, QFP, CSP, and ultra-fine pitch components
Capability to place miniature components such as 0201 and 01005 with high accuracy
Inline SPI and 3D AOI for real-time quality inspection
Uniform solder profiles using our 8+3 zone reflow oven
Single-sided and double-sided SMT assembly capabilities

Why Choose KSK for SMT Assembly

High precision and repeatability ensured by advanced machinery
Faster turnaround times ideal for NPD, prototyping, and production
Consistent quality with automated inspections and IPC-A-610 compliance
Ability to handle high-mix, low-to-medium volume projects efficiently
Reliable performance for complex, high-density PCB designs
With world-class equipment and a process-driven approach, KSK Technology delivers SMT assemblies that meet global quality standards and support the evolving needs of today’s electronics industry. Our focus on accuracy, speed, and reliability ensures every PCB is production-ready and built to perform flawlessly.

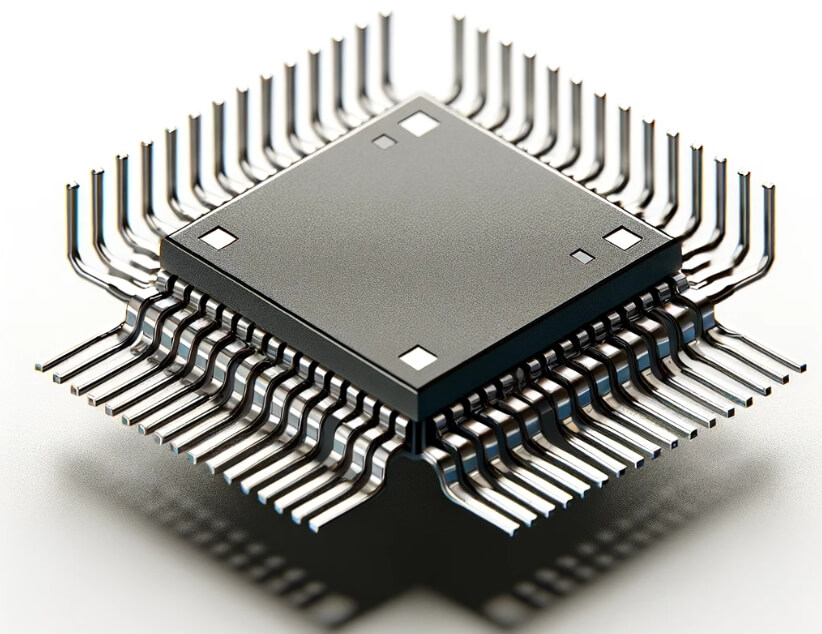

4. Advanced Packaging (BGA, QFP, QFN)

Our Advanced Packaging service is designed to handle today’s most sophisticated and compact electronic assemblies with absolute precision. At KSK Technology, we specialize in mounting advanced component packages such as BGA, QFP, and QFN, ensuring accurate placement, reliable solder joints, and outstanding electrical performance. With state-of-the-art SMT lines, optimized reflow profiles, and high-resolution inspection technologies, we deliver assemblies that meet the highest standards for density, complexity, and reliability.

Advanced packages require meticulous control of temperature, alignment, and solder flow. Our engineering team uses refined workflows—including precise stencil printing, advanced placement calibration, and automated thermal profiling—to ensure perfect execution. Every BGA and bottom-terminated device is thoroughly inspected using 3D AOI and microscopic verification to ensure solder integrity, void control, and optimal connectivity. This makes our advanced packaging process ideal for demanding applications in telecom, automotive electronics, industrial automation, medical devices, IoT products, and consumer electronics.

Our Advanced Packaging Capabilities

High-precision placement of BGA, QFN, QFP, CSP, LGA, and micro-BGA packages
Optimized soldering with controlled thermal profiling for void and warp minimization
3D AOI and microscopic inspection for verifying hidden joints and component integrity
Support for high-density, multi-layer, and fine-pitch PCB layouts
Robust process control for high reliability in mission-critical applications

Why Choose KSK for Advanced Packaging

Expertise in handling complex, miniaturized, and thermally sensitive components
Precise alignment and stable soldering ensured by advanced SMT machinery
Superior quality assurance backed by IPC-A-610 guidelines
Ideal for high-performance and compact electronic product designs
Reliable, repeatable results from prototype builds to production volumes
KSK Technology ensures that every advanced packaged component meets strict electrical, mechanical, and thermal performance requirements. With our specialized capabilities and high-end inspection tools, we deliver assemblies that support next-generation electronics with uncompromising reliability and performance.

5. Fine Pitch Assembly (0201 & 01005)

Our Fine Pitch Assembly service is specifically engineered to handle ultra-miniature components like 0201 and 01005, where precision, placement accuracy, and controlled soldering are absolutely critical. At KSK Technology, we combine advanced pick-and-place machines, high-resolution printing, and optimized reflow processes to achieve flawless assembly of these extremely small components. This capability allows our customers to design compact, lightweight, and high-density electronics without compromising performance or reliability.

Fine-pitch components require exceptional control over stencil design, solder paste deposition, thermal management, and alignment tolerances. Our production line is calibrated to manage these micro-scale challenges with consistency and repeatability. With inline SPI and 3D AOI systems, we verify every deposit and solder joint to ensure precise volume, perfect alignment, and defect-free connections. This makes our fine-pitch process ideal for next-generation electronics, IoT devices, wearables, sensors, medical instruments, and compact consumer products.

Our Fine Pitch Assembly Capabilities

Placement of ultra-small components including 0201, 01005, and micro-passives
High-precision pick-and-place with accurate vision alignment systems
Controlled stencil printing and solder deposition for micro-scale footprints
Inline SPI and 3D AOI for real-time defect detection and measurement
Stable reflow profiles designed for micro-component thermal compatibility

Why Choose KSK for Fine Pitch Assembly

Exceptional accuracy required for high-density and compact PCB designs
Zero-defect soldering ensured by advanced inspection and process monitoring
Ideal for miniaturized, high-performance, and portable electronic devices
Smooth scalability from prototype builds to volume production
Compliance with industry-leading quality and IPC standards
With refined processes, advanced tools, and expert technicians, KSK Technology delivers fine-pitch assemblies that support modern electronics where size, performance, and reliability must work together flawlessly.

6. Transparent BOM Costing & No MOQ

At KSK Technology, our Transparent BOM Costing & No MOQ service is designed to give customers complete clarity, flexibility, and control over their production requirements. We believe in a fully open costing process, where every component, material, and manufacturing step is clearly itemized—ensuring absolute transparency with no hidden charges or unexpected expenses. This approach helps businesses make informed decisions, optimize costs, and plan their projects more efficiently.

With no minimum order quantity, we support everything from single prototypes to low-volume development batches and scaling up to production runs at your pace. Startups, R&D teams, and OEMs benefit from the freedom to experiment, innovate, and refine their product designs without the burden of high-volume commitments. Whether you’re validating a new idea, testing multiple revisions, or preparing for mass production, our flexible model adapts to your exact needs.

What We Offer Under BOM Transparency

Clear, detailed breakdown of every component and material in the BOM
Open costing model with no hidden margins or markup surprises
Sourcing from trusted global suppliers for quality and price stability
Real-time updates for component availability and pricing
Stable reflow profiles designed for micro-component thermal compatibility

Advantages of No MOQ

Ability to order even a single prototype without volume restrictions
Ideal for product development, prototyping, and engineering validation
Cost-effective for startups and R&D units working on frequent design iterations
Smooth transition to larger production runs when the design is finalized

Why Choose KSK for BOM & Order Flexibility

Full visibility into material and procurement costs
Freedom to build at your pace, in any quantity you choose
Better cost planning and faster decision-making for project teams
Strong support for new product development and early-stage projects
KSK Technology’s transparent BOM process and no-MOQ model help customers achieve cost-efficiency, design flexibility, and predictable outcomes—while ensuring high-quality manufacturing from prototype to production.
